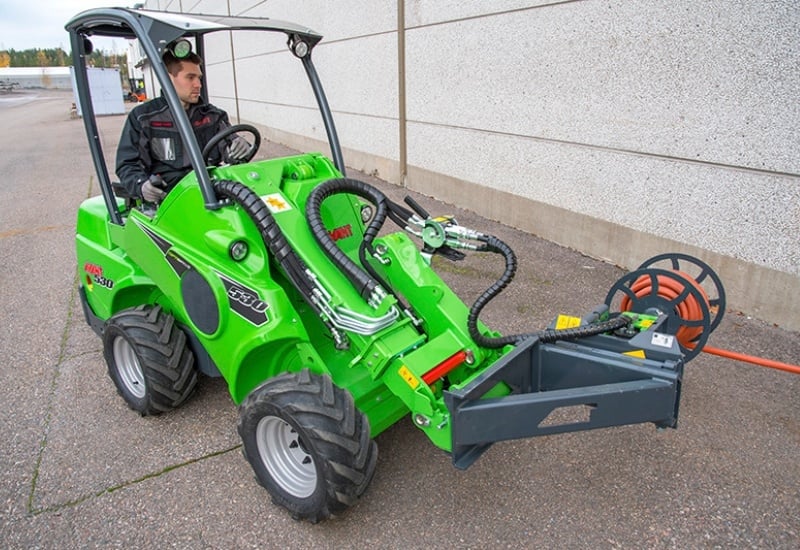

Multi function drive unit - cable_hose reel 2
Multi function drive unit - carousel broom 1
Multi function drive unit - carousel broom 2
Multi function drive unit - carousel broom 3
Multi function drive unit - rotary hoe 1
Multi function drive unit - rotary hoe 2
Multi function drive unit - rotary hoe 3
Multi function drive unit - screw pile adaptor 1
Multi function drive unit - screw pile adaptor 2
Multi function drive unit - screw pile adaptor 3
Multi function drive unit - angle adaptor 90
Multi function drive unit - xl weed brush
Multi function drive unit - carousel broom
Multi function drive unit - xl wire rope brush
Digging and construction

Multi function drive unit

  • Torque of 1355 Nm.

  • Auger drills and screw pile adapter are mounted on the drive unit. In addition, the following attachments can be fitted: Concrete mixing drum, screw cone log splitter, screening drum, cable/hose reel, carousel broom, rotary hoe, angle adapter 90°, XL weed brush, XL wire rope brush.

The Avant multi function drive unit can be fitted with auger drills and a screw pile adaptor. In addition, there are several other attachments available which include a concrete mixing drum, screw cone log splitter, screening drum, cable/hose reel, carousel broom, rotary hoe, XL weed brush and XL wire rope brush.

There is also a 90 degree angle adaptor available as an option, on which the drive unit can be mounted. It turns the drive unit 90° to the left or right. This means that for instance the carousel broom sweeps on the left/right side of the loader, and the cable/hose reel is crosswise to the loader and winds the cable longitudinally (in parallel to the loader).

TECHNICAL INFORMATION

  • DETAILS

  • COMPATIBLE MODELS

WIDTH HEIGHT LENGTH WEIGHT PRODUCT NO
550 mm 560 mm 405 mm 85 kg A37190
Option:
ATTACHMENT CONCRETE MIXING DRUM SCREW CONE LOG SPLITTER SCREENING DRUM CABLE/HOSE REEL CAROUSEL BROOM ROTARY HOE SCREW PILE ADAPTOR ANGLE ADAPTOR 90° XL WEED BRUSH CAROUSEL BROOM XL WIRE ROPE BRUSH
VOLUME 140 l water; 90 l ready concrete – 90l – – – – – – – –
LENGTH 760 mm – 605 mm – – 531 mm – 630 mm – – –
WIDTH 600 mm – 500 mm 558 mm – 156 mm – 651 mm – – –
INSIDE WIDTH – – – 400 mm – – – – – – –
HEIGHT – – 461 mm – – 283 mm – 300 mm 375 mm – 370 mm
WEIGHT 50 kg 30 kg 75 kg 25 kg 67 kg 15 kg – 41 kg 64 kg 67 kg 36 kg
DIAMETER – – – – – – – – Max. 1240 mm – Max. 990 mm
REEL DIAMETER – – – 190 mm – – – – – – –
END PLATE DIAMETER – – – 500 mm – – – – – – –
CULTIVATING DEPTH – – – – – Max. 160 mm – – – – –
PRODUCT NO A37395 A37500 A37207 A37311 A37317 A37491 A418530 A37323 A429932 A433646 A431157
VERY COMPATIBLE Check COMPATIBLE Check INCOMPATIBLE Check
220 e513
225 e527
225LPG
313S
320S
420 & 423
520
523
525LPG
528
530
R20
R28
R35
630
635
640
735
745
750
755i
760i
850
860i
