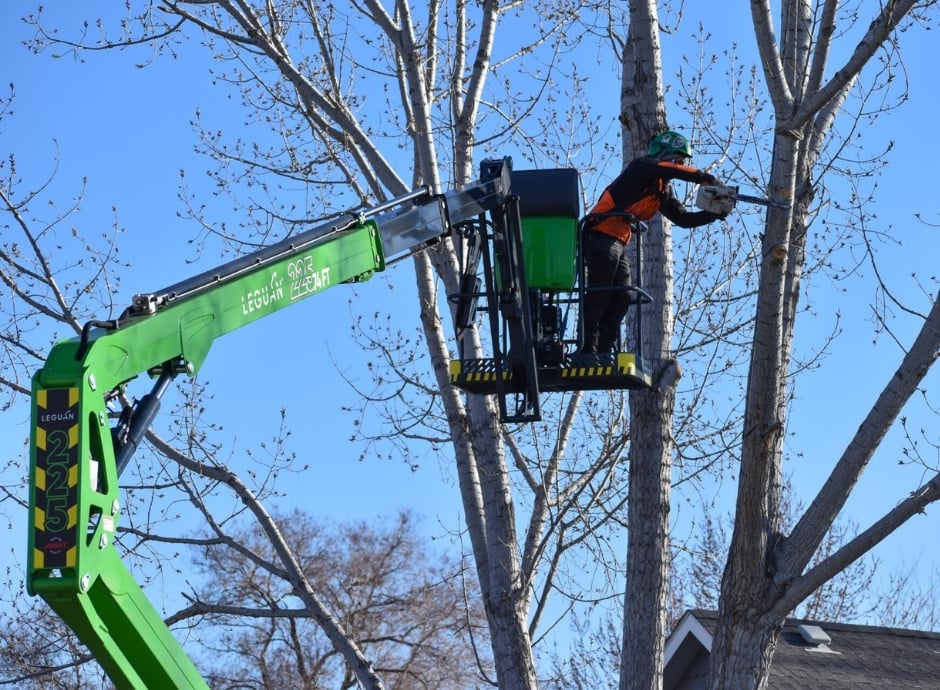

Leguan lifts for tree work

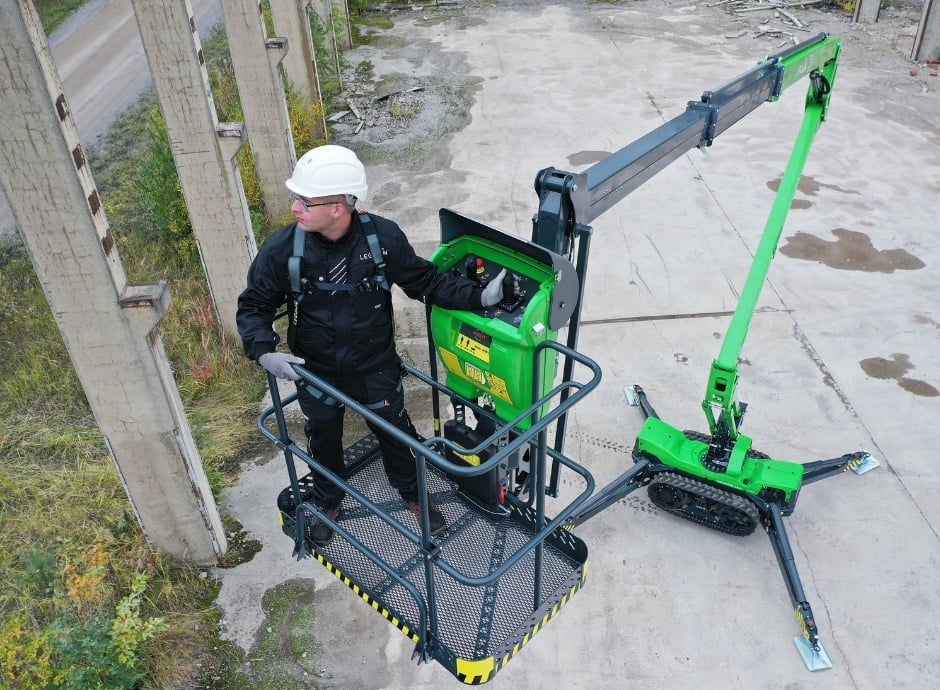

Leguan lifts for construction work
Leguan lifts
Leguan lifts New Zealand
Leguan lifts New Zealand
Leguan lifts safety

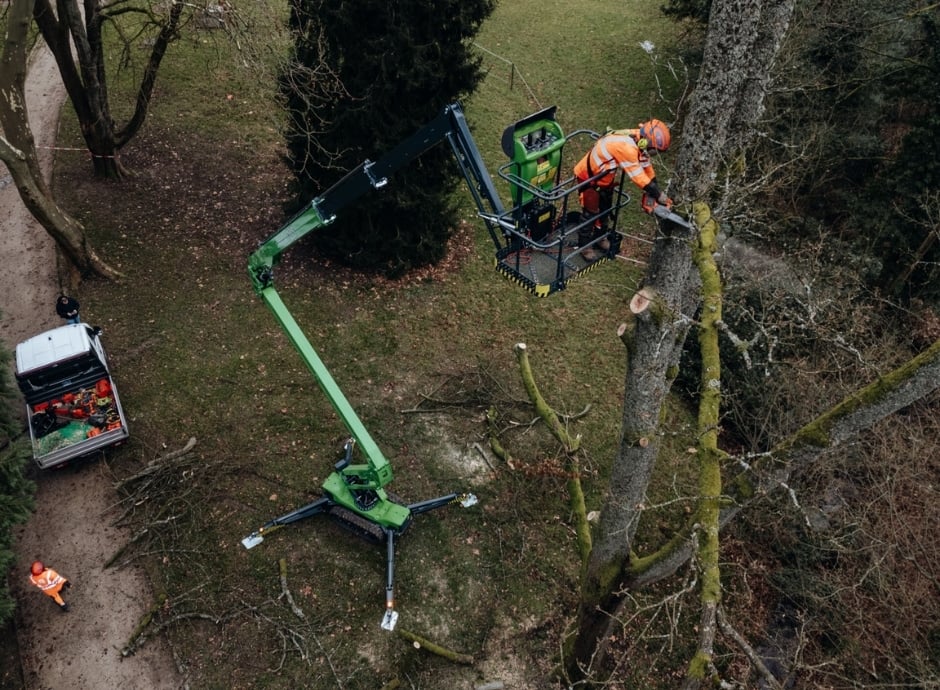

Leguan self-propelled platform

Leguan lifts

  • Unrivalled all-terrain capabilities

  • Robust boom construction and protected chassis

  • Efficient hydraulics for simultaneous multi-boom operation

  • Industry-leading side reach and up and over clearance

  • Highest standard of safety and user-friendly design

Leguan Lifts specialises in designing and manufacturing self-propelled access platforms. The company introduced the first self-propelled access platform with outriggers in 1994, and remains a leader in the field today. Leguan Lifts is part of the Avant Tecno Group from Finland.

Every spider lift features exceptional off-road capabilities and a robust boom structure, making Leguans suitable for diverse access applications. These machines are built to perform in tough conditions, from wet weather to steep slopes common in New Zealand. Leguan has recently updated their entire product range with improved features and a straightforward, easy-to-master control system.

TECHNICAL INFORMATION

  • DETAILS

  • FEATURES

  • SPECIFICATIONS

  • DIMENSIONS

The Leguan 265 offers a working height of 26.5 m, a maximum outreach of 13.6 m, and an up-and-over reach of over 10 m. It features a lightweight design and compact length for manoeuvrability in confined spaces. The rugged track system, good ground clearance, and low centre of gravity provide stability and mobility in demanding environments such as tree care and construction.

The Leguan 265 takes just 1 minute and 35 seconds to fully extend the booms to maximum working height, allowing operators to complete more projects efficiently.

STANDARD FEATURES

  • Leguan EDX
  • 21 hp Kubota diesel engine
  • Automatic engine RPM control
  • Automatic start-stop function for electric motor
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • Home and Back to work functions
  • JIB-boom with 120-degree operating range
  • USB & USB-C power outlets on platform
  • Battery powered emergency lowering system
  • Lower controls with integrated service display
  • Elevated driving position

OPTIONAL FEATURES

  • 110 V electric motor + 110 V power outlets on platform
  • Remote control for driving and outriggers
  • LED spot lights for platform
  • Tool trays on platform
  • Outrigger beacons
  • Hose to platform (air/water)
  • Engine heater
  • Non-marking tracks
  • Narrow single person platform
  • Custom color
SPECIFICATION VALUE
MAX WORKING HEIGHT 26.5 m
MAX. PLATFORM HEIGHT 24.5 m
MAX SIDE REACH 10.9 m (250 kg) / 13.6 m (120 kg)
MAX. LIFT CAPACITY 250 Kg (2 persons)
TRANSPORT DIMENSIONS (L x W x H) 6.88 x 1.33 x 2.28 m
PLATFORM DIMENSIONS 1.33 x 0.75 m
ROTATION OF THE PLATFORM 110° (±55°)
SLEWING 440°
GRADEABILITY 45% (25°)
WEIGHT 3,920 kg
ENGINE Kubota 21 hp diesel or 230 V / 2.2 kW electric
DRIVE SYSTEM Hydraulic tracks
MAX. DRIVE SPEED 3.1 km/h

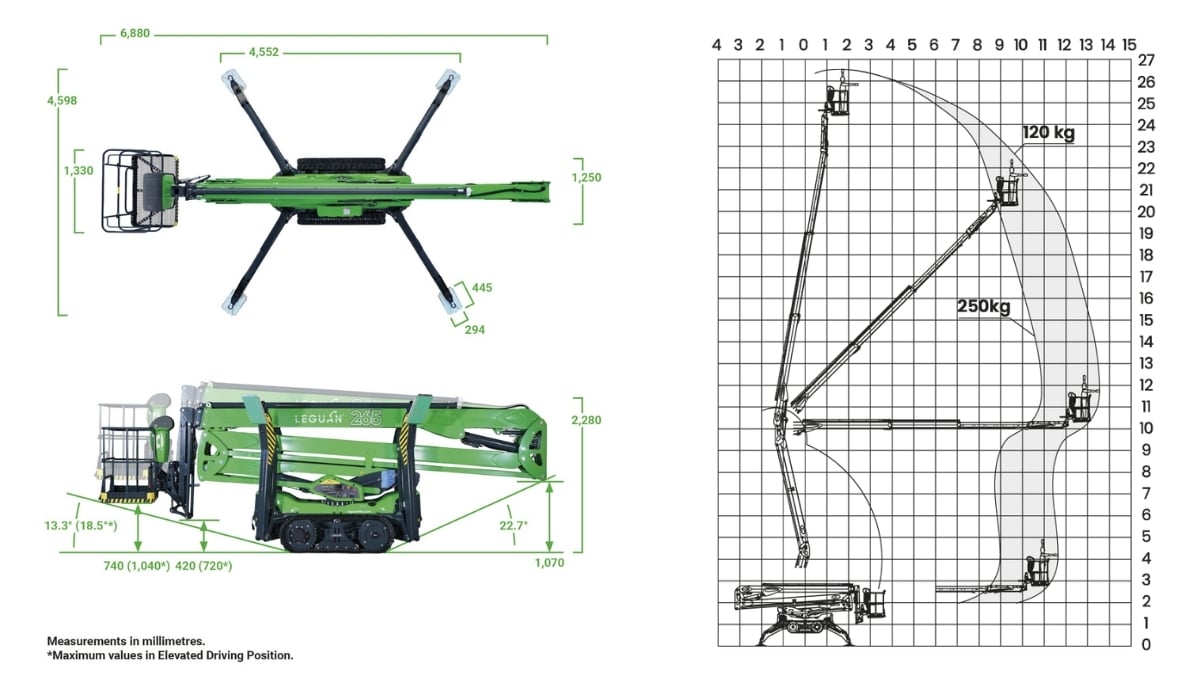

Leguan 265 dimensions

  • DETAILS

  • FEATURES

  • SPECIFICATIONS

  • DIMENSIONS

The Leguan 225 features strong all-terrain capabilities, a high-profile track platform and fast driving speeds for demanding environments. The spider lift's boom is designed to provide good side reach even at high working heights, with straightforward joystick controls for smooth operation.

Boom operation is steady, and simultaneous movements are easy to master. The Leguan 225's intelligent features help maintain efficiency. The boom is protected from external impacts, falling branches and sawdust, making the 225 a solid choice for arborists, construction workers and other professionals.

STANDARD FEATURES

  • Leguan EDX
  • 21 hp Kubota diesel engine
  • Automatic engine RPM control
  • Automatic start-stop function for electric motor
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • Home function / Back to work position function
  • JIB-boom with 120-degree operating range
  • USB & USB-C power outlets on platform
  • Battery powered emergency lowering system
  • Lower controls with integrated service display
  • Elevated driving position

OPTIONAL FEATURES

  • 110 V electric motor + 110 V power outlets on platform
  • Remote control for driving and outriggers
  • LED spot lights for platform
  • Tool trays on platform
  • Outrigger beacons
  • Hose to platform (air/water)
  • Engine heater
  • Non-marking tracks
  • Narrow single person platform
  • Custom colour
SPECIFICATION VALUE
MAX WORKING HEIGHT 22.5 m
MAX. PLATFORM HEIGHT 20.5 m
MAX SIDE REACH 9.1 m (250 kg) / 11.2 m (120 kg)
MAX. LIFT CAPACITY 250 Kg (2 persons)
TRANSPORT DIMENSIONS (L x W x H) 6.03 x 1.33 x 2.2 m
PLATFORM DIMENSIONS 1.33 x 0.75 m
ROTATION OF THE PLATFORM 110° (±55°)
SLEWING 440°
GRADEABILITY 45% (25°)
WEIGHT 2,920 kg
ENGINE Kubota 21 hp diesel or 230 V / 2.2 kW electric
DRIVE SYSTEM Hydraulic tracks
MAX. DRIVE SPEED 3.1 km/h

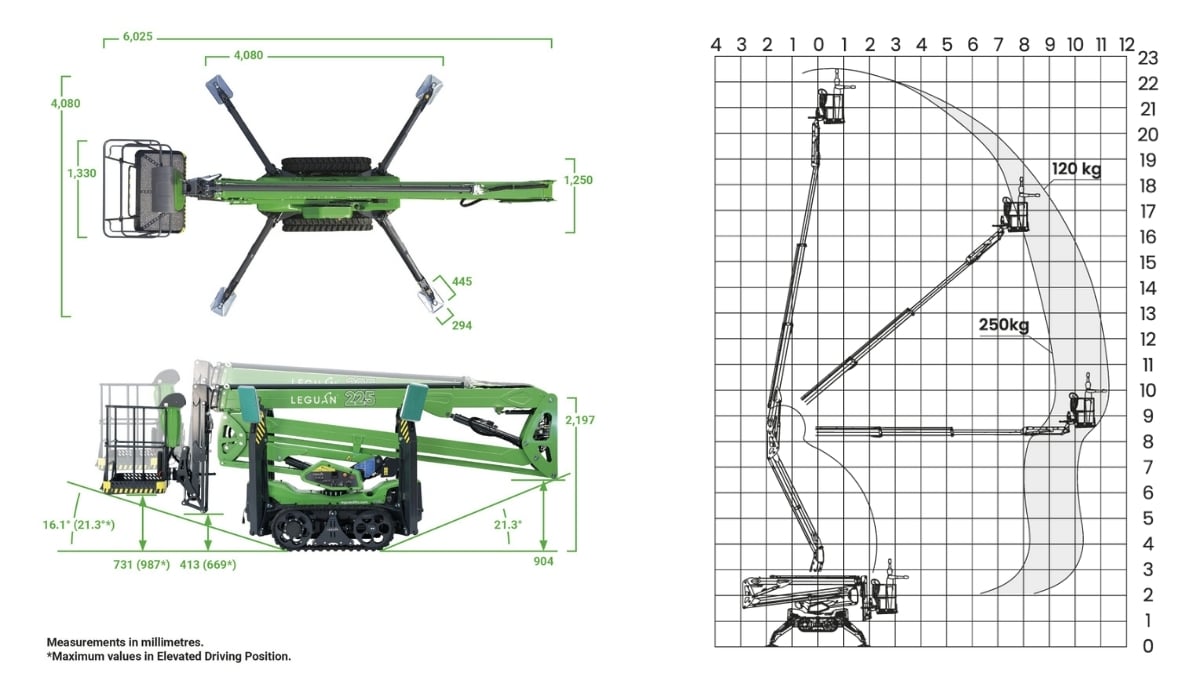

Leguan 225 dimensions

  • DETAILS

  • FEATURES

  • SPECIFICATIONS

  • DIMENSIONS

The Leguan 195 combines speed, precision and safety. This all-terrain spider lift performs well in tough environments, with a robust track platform and good driving capabilities.

It is fast to set up, with boom speeds that take the operator to maximum working height in just 55 seconds. The boom design provides good side reach, even at greater heights, while the joystick control offers smooth, precise movements for easy operation.

A shielded boom structure protects key components from external damage, making it suitable for demanding jobs such as arboriculture and construction work. The Leguan 195 offers reliable performance whether working in tight spaces or tackling tasks at height.

STANDARD FEATURES

  • Leguan EDX
  • 21 hp Kubota diesel engine
  • USB power outlets on platform
  • Automatic engine RPM control
  • Automatic levelling of the outriggers
  • Proportional outreach monitoring system
  • Electric rotation of the platform
  • Home/back to work function
  • JIB-boom with 120-degree operating range
  • Battery powered emergency lowering system
  • Lower controls with integrated service display
  • Intuitive joystick control
  • Elevated driving position (EDP)

OPTIONAL FEATURES

  • 110 V electric motor + 110 V power outlet on platform
  • Remote control for driving and outriggers
  • LED spotlights for platform
  • Tool trays on platform
  • Outrigger beacons
  • Hose to platform (air/water)
  • Engine heater
  • Non-marking tracks
  • Narrow single person platform
  • Custom colour
SPECIFICATION VALUE
MAX WORKING HEIGHT 19.7 m
MAX. PLATFORM HEIGHT 17.7 m
MAX SIDE REACH 9.0 m (250 kg) / 9.9 m (120 kg)
MAX. LIFT CAPACITY 250 Kg (2 persons)
TRANSPORT DIMENSIONS (L x W x H) 5.29 x 1.33 x 2.16 m
PLATFORM DIMENSIONS 1.33 x 0.75 m
ROTATION OF THE PLATFORM 110° (±55°)
SLEWING 440°
GRADEABILITY 45% (25°)
WEIGHT 2,700 kg
ENGINE Kubota 21 hp diesel or 230 V / 2.2 kW electric
DRIVE SYSTEM Hydraulic tracks
MAX. DRIVE SPEED 3.1 km/h

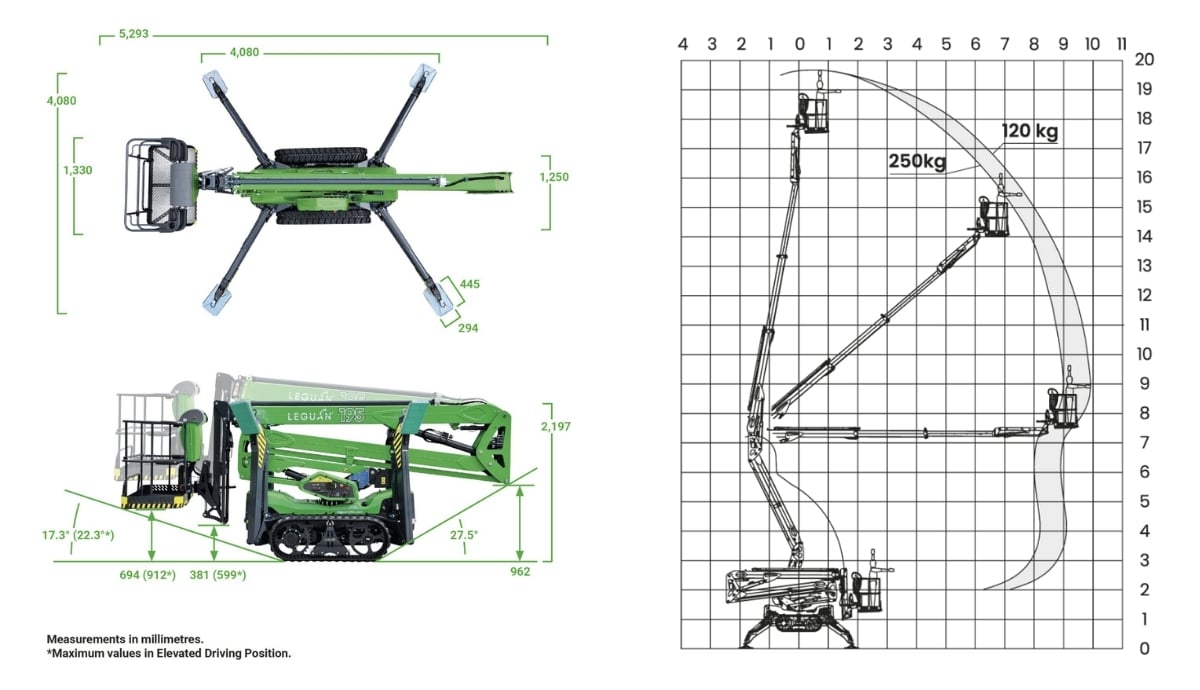

Leguan 195 dimensions

Versatile

Leguan spider lifts are known for their exceptional off-road capabilities and strong gradeability. The track chassis offers good ground clearance and travel speeds for moving across varied terrain. The fuel-efficient combustion engine and silent electric operation makes Leguan suitable for both indoor and outdoor use, and the compact size makes transportation straightforward.

Intuitive and user-friendly

Advanced hydraulic design allows smooth and simultaneous boom movements, making it easy to manoeuvre Leguans in narrow spaces and maintain distance to walls. Leguan spider lifts feature automatic levelling that allows straightforward outrigger setup with a single button push, even on challenging terrain.

Next generation features

Safety features and the proportional outreach monitoring system are controlled by a modern PLC that ensures high safety standards with excellent outreach. Leguan Lifts incorporates solid industrial design, useful innovations and energy-saving functions, which contribute to strong resale values.

Which Model Fits Your Needs?

Leguan spider lifts deliver reach, stability and manoeuvrability for professionals who need reliable access solutions. Whether you're working in arboriculture, construction or maintenance, there's a Leguan model suited to your requirements. Download the complete Leguan brochure to compare full specifications, or get in touch to arrange a demonstration.

FAQS

What makes Leguan spider lifts suitable for varied terrain?

Leguan spider lifts feature a robust track system, good ground clearance and strong gradeability for working on slopes and uneven surfaces. The shielded boom and chassis protect vital components from damage, moisture and debris, ensuring reliable operation in wet conditions or challenging environments.

Can Leguan spider lifts be used indoors and outdoors?

Yes, all Leguan models feature dual power options: a Kubota 21 hp diesel engine for outdoor work and a 230V electric motor for indoor operation. The electric mode produces zero emissions, making it suitable for indoor maintenance, construction and installation work.

How quickly can a Leguan spider lift be set up?

Leguan spider lifts feature automatic levelling that allows operators to set up the outriggers with a single button push. The Leguan 195 reaches maximum working height in 55 seconds, while the Leguan 265 extends to full height in 1 minute and 35 seconds.

What training is required to operate a Leguan spider lift?

Leguan spider lifts are designed with straightforward controls and an easy-to-use interface. The uniform control system across the entire Leguan range means that once you're familiar with one model, you can operate them all. The joystick controls and automatic safety features help operators work confidently and efficiently.
