200 series


  • Lift capacity of 350 kg.

  • Lift height of 1.4 m.

  • Engine power between 20 to 25 hp.

  • Drive speed of 10 km/h.

  • Auxiliary hydraulics 30 to 42 l/min.

  • Perfect for small job sites with limited or narrow accesses.

  • Space-efficient and easy to transport on a car trailer.

Unmatched capacity in a compact package


The 200 series is our smallest loader, capable of working in all the spaces larger machines cannot reach. However, this space-efficient design is far more than just a ride-on mower or digger – it’s your ultimate all-in-one tool.

With over 100 specialised attachments, your 200 series loader will be your best friend all year round. The quick attach system and hydraulic multi-connector make it easy to use no matter what job is at hand, whether that be earthmoving, lawn mowing, digging, load handling, or anything in between.

  • AVANT 220

  • AVANT 225

  • DETAILS
  • SPECIFICATIONS
  • DIMENSIONS
LIFT CAPACITY
350 kg
ENGINE POWER
20 hp petrol
LIFT HEIGHT
1.4 m
SPEED
10 km/h
LENGTH
1910 mm
WIDTH
995/1025 mm
HEIGHT
1880 mm
WEIGHT
700 kg
TYRES
20x8 - 10" Grass/TR
SEATBELT
Standard
LIFTING HEIGHT
1400 mm
TIPPING LOAD*
350 kg
AUX HYDRAULICS OIL FLOW - REAR OUTLET (OPTION)
7 l/min
AUX HYDRAULICS OIL FLOW - FRONT OUTLET (STANDARD)
30 l/min
DRIVE HYDRAULICS
Direct hydrostatic 4 wheel drive with 4 hydraulic motors
PULLING FORCE
620 daN
MAX DRIVE SPEED
10 km/h
ENGINE OUTPUT (ECE R120)
14.9 kW (20 hp)
FUEL
Gasoline
FUNCTION
4-stroke
ENGINE MAKE & TYPE
Kohler CV640 Stage V
PRODUCT NO
A21675
*The tipping load is measured with the load 400 mm from the front of the quick attach plate.

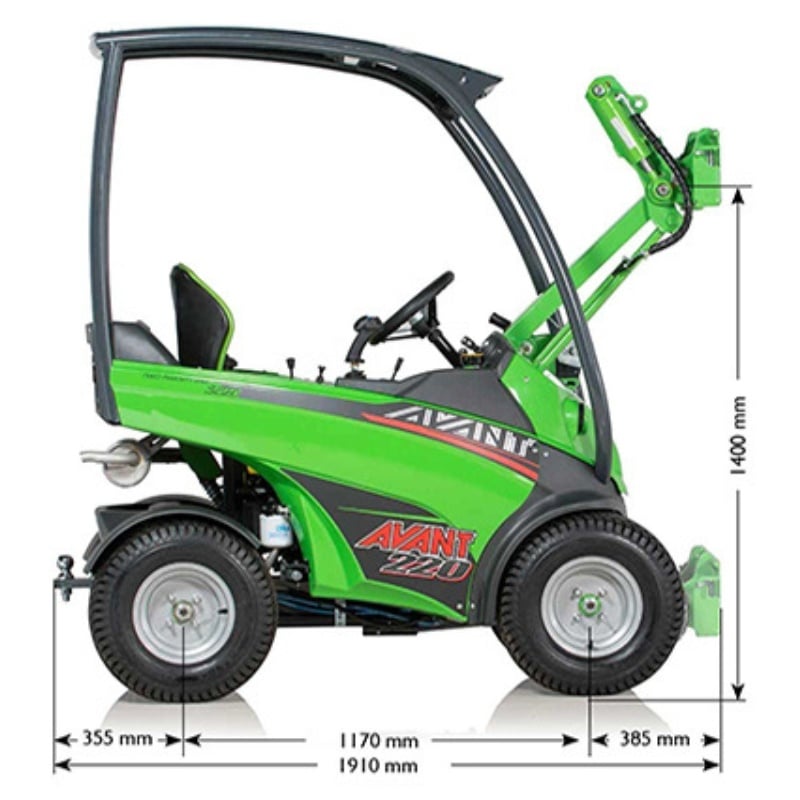

220 dimensions - side on

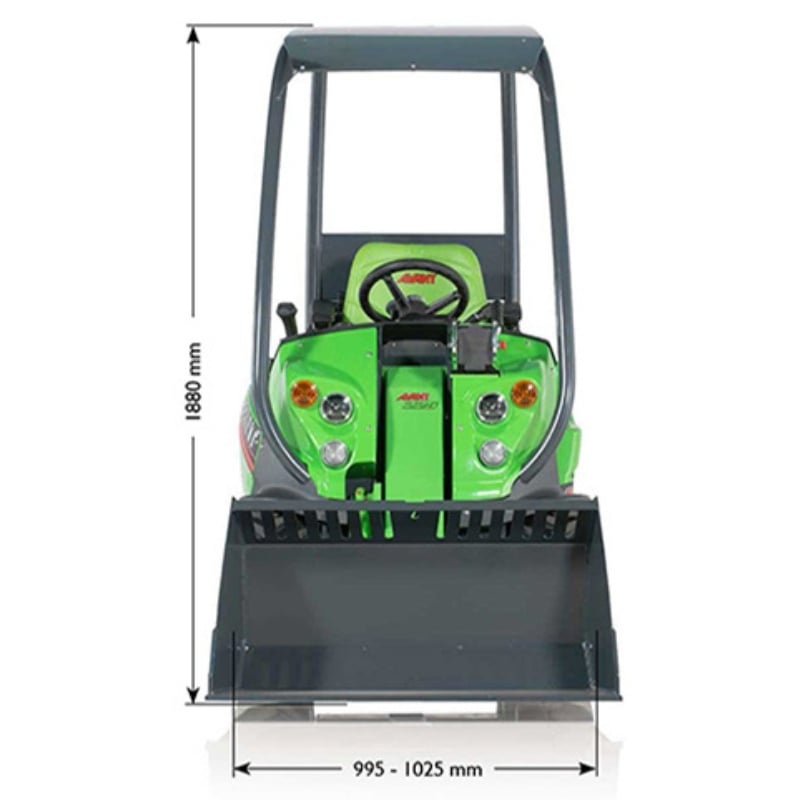

220 dimensions - front on
  • DETAILS
  • SPECIFICATIONS
  • DIMENSIONS
LIFT CAPACITY
350 kg
ENGINE POWER
25 hp petrol
LIFT HEIGHT
1.4 m
SPEED
10 km/h
LENGTH
1910 mm
WIDTH
995/1025 mm
HEIGHT
1880 mm
WEIGHT
700 kg
TYRES
20x8 - 10" Grass/TR
SEATBELT
Standard
LIFTING HEIGHT
1400 mm
TIPPING LOAD*
350 kg
AUX HYDRAULICS OIL FLOW - REAR OUTLET (OPTION)
7 l/min
AUX HYDRAULICS OIL FLOW - FRONT OUTLET (STANDARD)
42 l/min
DRIVE HYDRAULICS
Direct hydrostatic 4 wheel drive with 4 hydraulic motors
PULLING FORCE
640 daN
MAX DRIVE SPEED
10 km/h
ENGINE OUTPUT (ECE R120)
18.6 kW (25 hp)
FUEL
Gasoline
FUNCTION
4-stroke
ENGINE MAKE & TYPE
Kohler ECV730 EFI Stage V
PRODUCT NO
A21687
*The tipping load is measured with the load 400 mm from the front of the quick attach plate.
225 dimensions - side on
225 dimensions - front on

User friendly


The 200 series features user-friendly controls, making it the perfect loader for beginners. The standard cab is spacious and comfortable so you can work happily for hours on end or the optional L cab provides full protection against the weather. We’ve also optimised the cab for easy access and maximum visibility of the working area, guaranteeing efficient operation.

Between jobs, the hydraulic multi-connector system makes it easy to connect or detach the attachment’s hydraulic hoses with one hand. With the leak-free mechanism, you can even change them with the engine running, with pressure built up in the attachment, and in freezing ambient temperatures.

All-season performance


The compact size and manoeuvrability of the 200 series enables endless possibilities no matter the time of year. During spring and summer, you can simplify all your maintenance work, from lawn care and landscaping to pressure washing and hedge trimming. As temperatures drop, switch the attachments to clear snow, remove debris, cultivate soil, split logs, and more.

Our engineers have developed a compatible tool for every job, with the perfect balance of dimensions and auxiliary hydraulics. Whatever your needs, we’re confident that a 200 series loader will offer the best return on investment in terms of efficiency, convenience, and precision.

Durable and low-maintenance


Avant loaders are crafted in our state-of-the-art, highly automated production facility, which enables us to maintain rigorous quality control standards at every step of the production process. This ensures consistency, precision, and a high level of durability in each machine.

Before dispatch, each loader undergoes comprehensive testing to confirm it performs to high standards. By rigorously checking each unit, we ensure that every Avant loader is ready to handle demanding tasks from day one, requiring minimal maintenance over years of reliable service.

4x4 drive


All Avant loaders are equipped with four-wheel drive so you can operate safely in any conditions. Powered by a hydrostatic drive system and hydraulic drive motors on each wheel, these machines are highly efficient and dependable.

With the same ideology as our bigger loaders, the 200 series can easily handle rain, ice, and snow. What’s more, you can switch out the attachments with a snow plough, dozer blade, or salt spreaders to get your driveway cleared in no time.

FAQS


How does Avant compare to a skid steer?

Avant loaders and skid steer loaders are both compact loaders, but they have several differences, including:

  1. Size: Avant loaders are generally narrower and lighter than skid steer loaders.
  2. Manoeuvrability: Avant loaders have articulated steering, which is more responsive and causes much less damage to soft surfaces. Skid steers skid, which can tear up soft surfaces. If you need to turn on the spot, a skid steer will be better as it can pivot on a dime. Because an Avant is articulated it has a larger turning circle, but its unique drive system causes minimal damage to the ground surface.
  3. Operating costs: Avant loaders have lower fuel consumption and tyre wear than skid steers.
  4. Visibility: Avant loaders have 360 degree operator visibility and side entry for easier access to the cab.
  5. Lifting height: Avant loaders have a telescopic boom that provides increased lifting height and reach compared to a skid steer.
  6. Ground damage: Avant loaders cause minimal ground damage and don't require ground protection mats.

Learn more in this video.

How does Avant compare to a tractor?

Avant loaders are a versatile alternative to compact tractors, with several advantages over tractors, including:

  1. Manoeuvrability: Avant loaders are more nimble and can easily navigate tight spaces. They articulate in the middle, making them easier to manoeuvre than tractors.
  2. Attachments: Avant loaders have a variety of attachments that are easy to attach and remove. There are over 150 different attachments to choose from.
  3. Ease of operation: Avant loaders have one pedal for forwards and one pedal for backwards, making them easy to operate.
  4. Compactness: Avant loaders are compact and narrow, so they can fit through tight spaces. They can be legally transported on a standard plant trailer.
  5. Telescopic boom: Avant loaders have a telescopic boom that allows for a great outreach and lift capacity. The boom can be retracted to lift heavier loads, or extended to reach and lift higher.
  6. Cost: An Avant loader will cost more than a compact tractor. However, the Avant is more versatile which means they are better value for money.

How does Avant compare to a standard yard loader?

  1. Attachments: Avant loaders have a variety of attachments that are easy to attach and remove. There are over 150 different attachments to choose from.
  2. Lifting height: Avant loaders have a telescopic boom that provides increased lifting height and reach compared to a yard loader.
  3. Ground damage: Avant loaders have a unique 4x4 drive system which causes minimal ground damage compared to a traditional loader, while still offering better traction and stability.
  4. Stability: Avant loaders have a rigid pivot point which means there is less likelihood of rollover. This is why you will commonly see beekeepers and arborists using Avant loaders as they are very stable on slopes.
  5. Versatility: Avant loaders will complete the basic functions of a "yard loader", but also have many alternative uses as a result of the attachment range, quick connect hydraulic system, and telescopic boom.

Learn more in this video.

Are Avant loaders stable?

Yes, Avant loaders are stable because:

  1. Low centre of gravity: The operator sits in the front chassis, which lowers the centre of gravity and makes the loader stable.
  2. Rigid articulation joint: The joint doesn't swing sideways, which increases stability.
  3. 4x4 system: The advanced 4x4 system provides traction.
  4. Articulation doesn't oscillate: When articulating on a slope, the front and rear portions remain at the same angle.

How long has Avant been in NZ?

Avant loaders have been in New Zealand since 2004, when Avant Equipment NZ (formerly Glenbrook Machinery) became the importer and distributor for the brand.

Avant Tecno is a market leader in articulated mini loaders, and has been manufacturing loaders since 1991. Their loaders are used in many industries in New Zealand, including beekeeping, landscaping, and arboriculture.

Avant Equipment NZ has warehouses in Auckland and Christchurch, and offers a nationwide rental fleet, spare parts, and service agents.

How do I choose the right Avant model?

This depends on the application. In demanding commercial applications, we recommend models 635, 745, 750 and 850. These all have high flow hydraulics and will run virtually all attachments. For hobby farms, the smaller 200, 400 and 500 series are a good choice.
