Property maintenance

Dozer blade 2000/2500

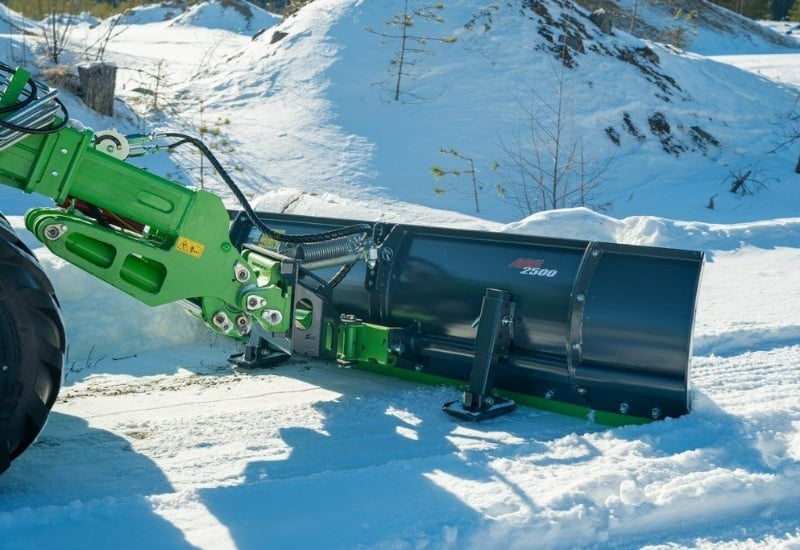

  • Two solid skid shoes which reduce blade wear and improve manoeuvrability.

  • Robust construction, with spring release mechanism designed for professional use.

  • Turnable extensions as standard, can be mounted in collection position or straight.

  • Support wheels, instead of skid shoes, available as an option – keep working height more constant when working on sensitive surfaces.

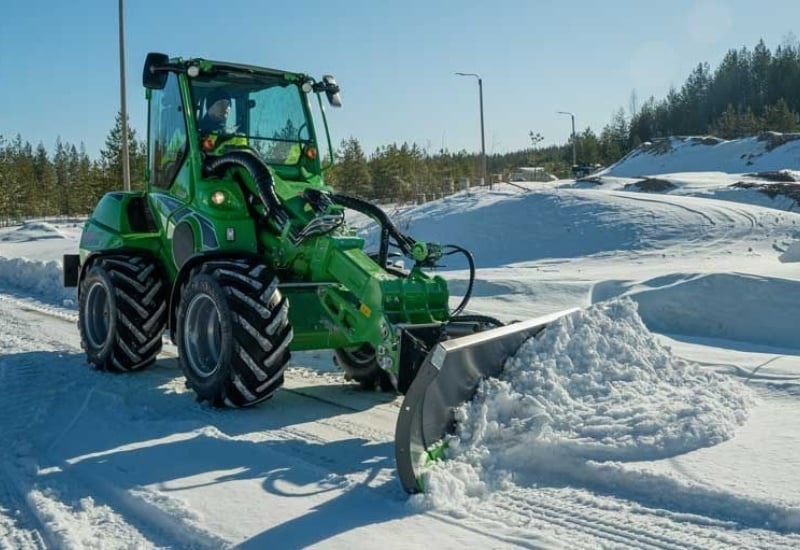

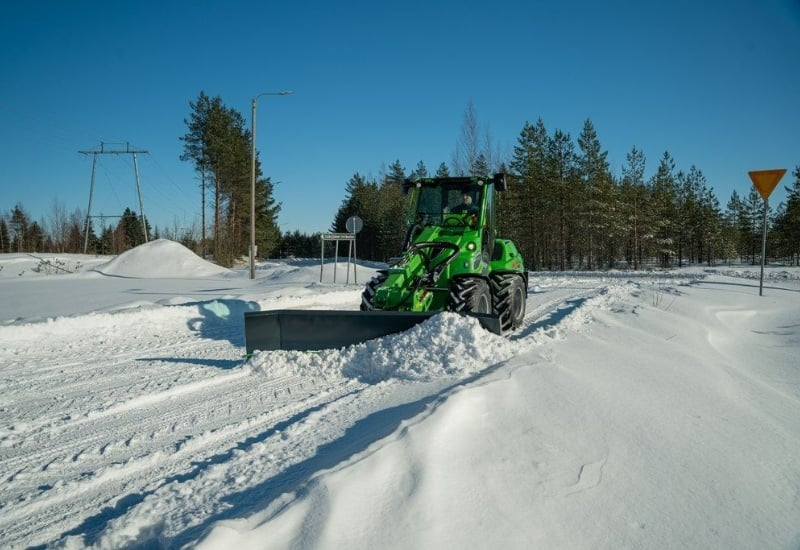

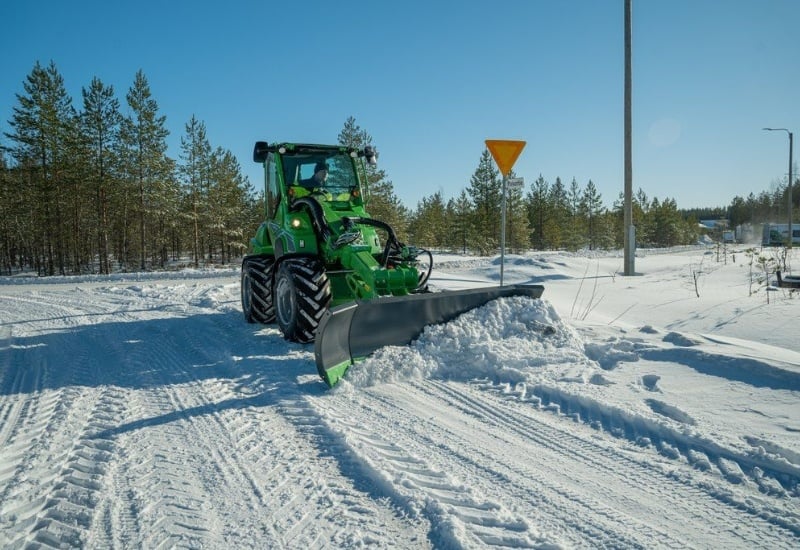

Equipped with hydraulic blade turning, the Avant dozer blade 2000/2500 is the ideal tool for snow removal, earthmoving and similar jobs where the materials must be dozed away quickly.

Dozer blades 2000 and 2500 feature a completely new design. The blade is higher and more curved than earlier models and moves material more efficiently to the side. Hydraulic slewing, spring release and skid shoes are standard equipment like before. So are the turnable 2x 310 mm extensions which can be mounted in straight or collecting position.

The completely new floating system allows the blade to float vertically, which makes working on uneven surfaces considerably easier and more efficient. The blade can also float sideways ± 10°.

The floating system can be adjusted manually in three different positions:

  1. Free-floating – both vertically and sideways.
  2. Sideways floating ± 10° only, without vertical floating.
  3. Rigid position – both vertical and sideways floating locked with bolts.

TECHNICAL INFORMATION


  • DETAILS

  • COMPATIBLE MODELS

MODEL 2000 2500
Blade width 1390 mm main blade + 2x 310 mm bolt-on extensions 1840 mm main blade + 2x 310 mm bolt-on extensions
Slewing angle ± 30 degrees ± 30 degrees
Weight 215 kg 232 kg
Blade height 590 mm 590 mm
Product no A36123 A36251
Option:
PRODUCT MODEL PRODUCT NO
Ice cutting edges Dozer blade 2000 A417437
Ice cutting edges Dozer blade 2500 A417729
Rubber edges Dozer blade 2000 A417441
Rubber edges Dozer blade 2500 A417672
Support wheels Dozer blade 2000 A417345
Support wheels Dozer blade 2500 A417345
