Tilt adaptor

The Avant tilt adaptor is mounted between the attachment and the loader’s attachment coupling plate. With it, the attachment can be tilted sideways which makes it possible to:

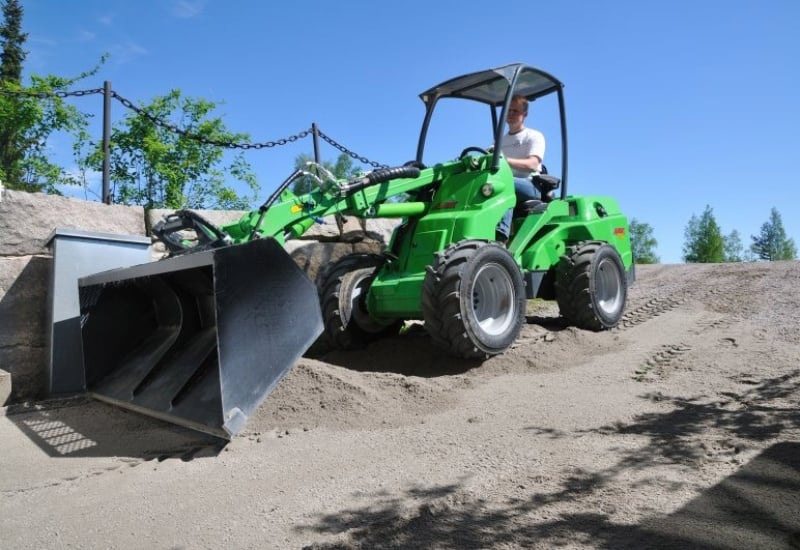

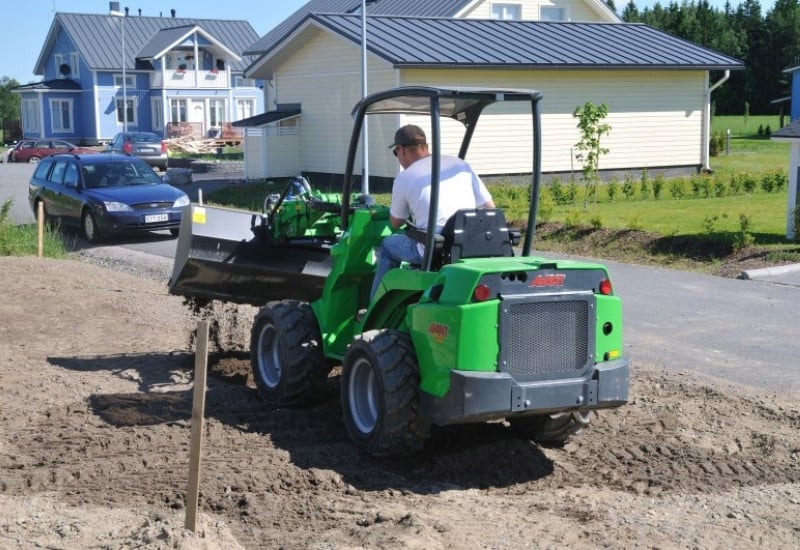

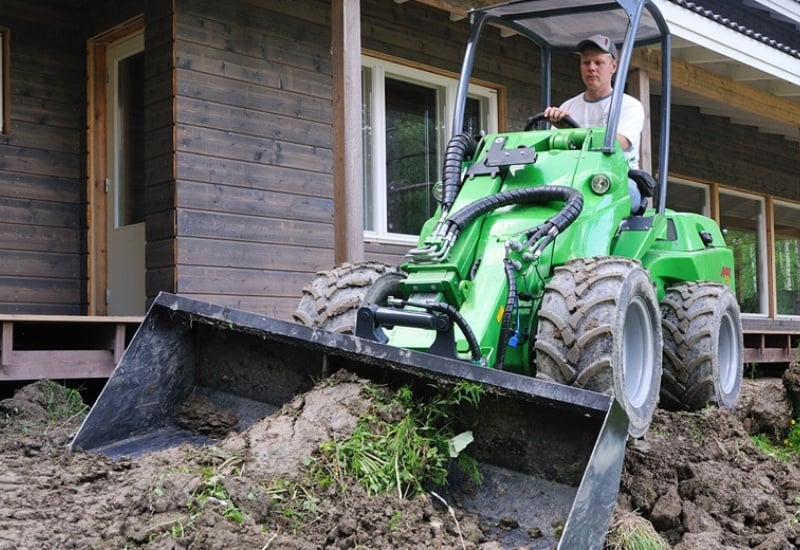

• Make different forms to the ground with a bucket or leveller.
• Keep a pallet fork level when you are driving on surfaces with a gradient.
• Load pallets that are on uneven ground.

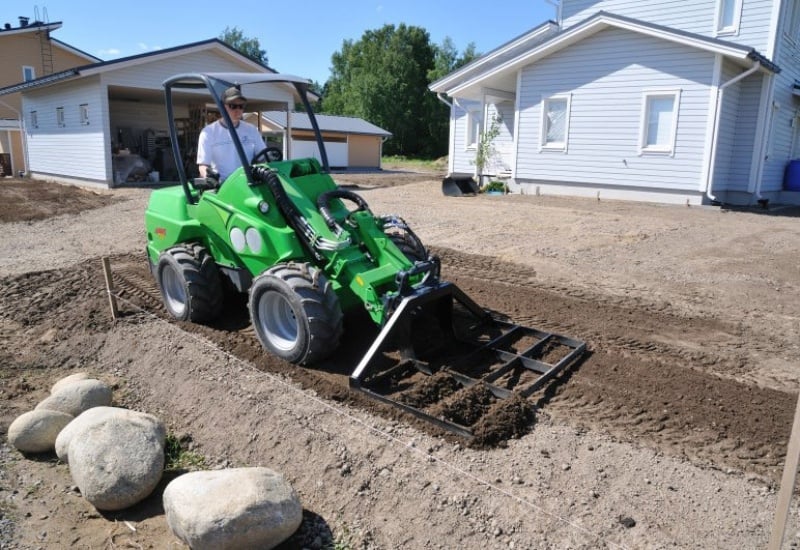

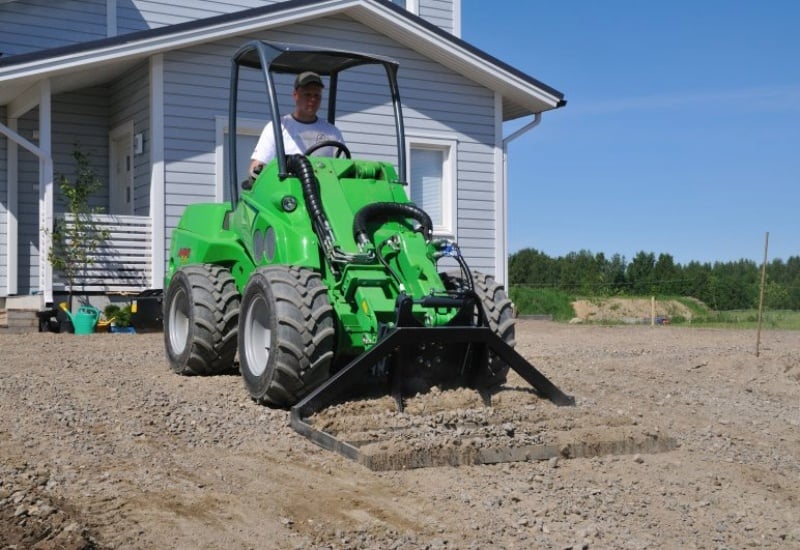

• Level ground on uneven surfaces.
• With the 90 degree tilt adaptor, rotate the attachment as much as 90 degrees.

There are two tilt adaptors available:

1. Tilt adaptor with max. 12.5 degree tilting in both directions. It is intended for buckets, the leveller and pallet fork – jobs where tilting is a must but the tilting angle doesn’t have to be big.
2. Tilt adaptor with max. 90 degree rotation, or 45 degree tilting in both directions. It is useful in applications where the attachment needs to be rotated more. E.g with a grabbing tool, rock drill or artificial turf attachment etc.

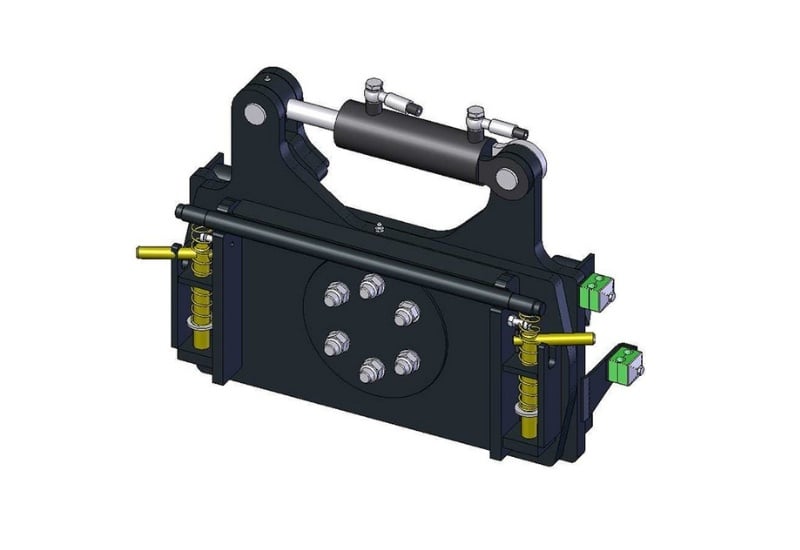

The hydraulic cylinder of the 90 degree tilt adaptor can be mounted in two different positions, which gives two tilting angles – either 45 degree tilting in both directions, or 90 degree rotation in one direction. The tilt adaptor is intended for non-hydraulically operated attachments, but with the optional second auxiliary hydraulics outlet in the front, it's possible to mount hydraulically driven attachments like a 4 in 1 bucket.
